Where should a trench drain go on a driveway?

A trench drain is typically installed flush across the full width of a driveway right in front of the garage door or at the low transition point of a downward-sloping drive. Heavy stormwater drops through the surface grate into an underground pipe before it can ever cross your garage threshold.

Can you fix water running into my garage?

Yes. We frequently solve garage flooding by saw-cutting the concrete in front of the garage door, excavating, and casting a heavy-duty trench drain with vehicular-rated grates that routes water away around the side of the home.

How do splash pads protect my foundation?

Downspouts dumping hundreds of gallons of roof water directly next to your foundation erode the supporting soil and cause foundation settlement. A permanent concrete splash pad or piped bubbler box spreads the water velocity and discharges it safely away from the slab perimeter.

How much does a driveway trench drain or concrete swale cost in South Carolina?

Poured concrete swales typically range from $25 to $45 per linear foot depending on width and excavation depth. Installing a vehicular-rated driveway trench drain (including concrete saw-cutting, channel placement, tied rebar, and underground PVC discharge piping) generally runs between $1,800 and $3,500 for a standard two-car driveway span.

Can a concrete swale be driven over by lawnmowers and vehicles?

Yes. We form parabolic, dish-shaped swales with gentle side slopes (typically 3:1 or 4:1) reinforced with Grade 60 steel rebar over a compacted stone base. You can comfortably cross them with riding lawnmowers, golf carts, and passenger vehicles without bottoming out or damaging the concrete.

SC Licensed · 4,000+ PSI Engineered Pours

Concrete Drainage Solutions in North Augusta, SC

Permanent poured concrete swales, integrated driveway trench drains, curb flumes, and heavy-duty splash pads engineered to evacuate torrential rainwater away from buildings.

Call (803) 640-2595 Request Free On-Site Quote

Fast Dispatch

Request a Free On-Site Estimate

Callback within 1 business hour · On-site inspection within 48 hours

Engineered Concrete Drainage Solutions in North Augusta, SC

South Carolina receives an average of 45 to 50 inches of rainfall annually, characterized by violent subtropical cloudbursts that dump multiple inches of rain in under an hour. When residential or commercial properties lack engineered surface drainage, this torrential volume turns sloping driveways into roaring storm canals, inundates garage workshops, and washes out the critical subgrade soils beneath slabs and foundations. Standing surface water not only damages building materials—it breeds mosquitoes and destabilizes local subgrades.

At FPC Construction, we engineer and pour permanent concrete drainage infrastructure across North Augusta, Aiken, Edgefield, and the Central Savannah River Area. Operating from our North Augusta hub, our civil crews evaluate stormwater catchment areas, calculate peak hydraulic flow rates, and establish laser-calibrated drainage channels. We construct poured parabolic concrete swales, vehicular-rated driveway trench drains, curb flumes, and heavy-duty foundation splash pads that capture and evacuate stormwater before it can compromise your property.

What Our Concrete Drainage Installation Scope Covers

Managing high-velocity stormwater requires precise civil elevations and durable ready-mix construction:

•Hydraulic Catchment Survey & Grade Calibration: Measuring yard elevations with digital laser transits to map watershed flow paths and establish positive gravity fall lines.

•Continuous Parabolic Swale Excavation: Excavating dish-shaped channels with gentle transitions that allow easy lawnmower crossing while containing high-volume torrents.

•Driveway Trench Drain Saw-Cutting: Precision diamond wet-saw cutting across existing concrete or asphalt driveways to recess heavy-duty polymer channel drains.

•Compacted Aggregate Stone Bedding: Installing a dense 4-inch crushed stone base (CR-14) beneath all swales and trench drains, compacted to 95% Standard Proctor density.

•Rebar Cages for Vehicular-Rated Sump Units: Encasing driveway trench drains in 4,000+ PSI concrete with tied steel rebar cages rated for heavy truck wheel loads.

•Ductile Iron & Galvanized Grate Installation: Bolting down ADA-compliant, heel-proof, vehicular-rated grates that trap leaves and debris while maximizing water intake.

•Buried Smooth-Wall PVC Underground Piping: Connecting channel drains to continuous 4- to 6-inch solid PVC discharge pipes routed underground to safe daylight outfalls.

•Rip-Rap Rock Armoring at Discharge Outfalls: Armoring pipe outlets with granite rip-rap stone to dissipate water energy and prevent hillside erosion.

Stopping Garage Flooding: Trench Drains for Sloped Driveways

Homes built with driveways sloping downward toward a basement garage or attached carport face chronic flooding risks during summer downpours. Water rushing down the driveway easily overwhelms shallow rubber garage door seals, flooding interior storage, ruining sheetrock, and breeding toxic mold.

The definitive engineering solution is a cast-in-place driveway trench drain. We cut a clean trench directly across the driveway apron immediately upstream from the garage threshold. Rainwater cascading down the drive falls through heavy cast iron grates into a smooth, high-velocity channel that directs the flow into an underground pipe routed around the foundation. Your garage floor stays dry regardless of how hard the skies open up.

Poured Concrete Swales vs. Traditional Grass Ditches

Property owners often ask why they should pave a drainage swale with concrete rather than relying on a simple grass ditch. The limitations of grass ditches in our region are severe:

•Zero Maintenance & No Soil Erosion: High-velocity water rushing through grass ditches rapidly rips up turf, cuts deep mud ruts, and deposits silt onto driveways. Concrete swales move water at high velocities with zero bank erosion.

•No Standing Water or Mosquito Breeding: Grass ditches hold stagnant water for days in wet Piedmont clay, creating breeding grounds for mosquitoes and lawn fungus. Concrete swales drain 100% dry within minutes after rainfall stops.

•Effortless Mowing & Curb Appeal: Our dish-shaped parabolic swales feature smooth, rolling contours that commercial zero-turn mowers glide over effortlessly without scalping turf.

Municipal Stormwater Codes & Aiken County Regulations

Diverting stormwater must be handled responsibly to protect neighboring properties and public infrastructure:

•Downhill Property Protection: South Carolina common-law drainage rules require that property modifications do not artificially concentrate and discharge high-velocity stormwater directly onto neighboring land without natural drainage easements.

•Public Right-of-Way Curb Flumes: When routing swales to municipal street gutters or state highway ditches in North Augusta or Aiken, curb cuts and flume transitions must comply with city and SCDOT encroachment standards. We coordinate all necessary permits.

Why Property Owners Choose FPC Construction for Drainage Solutions

Solving complex water movement issues requires experienced civil grade work and durable concrete construction:

•1-Hour Callback Guarantee: Contact our North Augusta dispatch office, and our concrete project lead will return your call within 60 minutes.

•48-Hour On-Site Laser Survey: We visit your property within 48 hours to shoot elevations, identify water sources, and determine the optimal drainage trajectory.

•24-Hour Itemized Written Quotes: Receive a detailed proposal detailing linear footage, channel dimensions, grate ratings, and discharge piping within 24 hours.

•Verified SC Licensing & $2M Insurance: Fully licensed through the SC LLR Contractor's Licensing Board, backed by $2M commercial general liability insurance.

•Turnkey Water Flow Verification: We flood every installed drainage system with high-volume water before leaving the job site to prove 100% positive drainage.

Direct Project Discussion · North Augusta Dispatch

Need Advice on South Carolina Subgrades or Drainage?

Speak directly with our project lead about slab thickness, soil stabilization, or emergency washout repair. Guaranteed 1-hour callback.

Call (803) 640-2595

Site Diagnostics

Common Signs You Need Concrete Drainage Solutions

Rainwater pooling at the entrance of your garage or carport and flooding the interior floor

Driveway acting as a storm canal that channels rushing rainwater directly into your home's foundation

Downspout discharge eroding huge trenches and washing out subsoil beneath slab corners

Yard slope sending heavy sheet-flow runoff across your patio and turning outdoor living space into mud

Standing stagnant water breeding mosquitoes and violating local stormwater retention regulations

Installation Methodology

Our 6-Step Pour & Engineering Process

Hydraulic Runoff Assessment

We measure site elevations, calculate catchment area square footage, and project peak rainfall volume during heavy Carolina storms.

Trench & Swale Excavation

We excavate continuous swale contours or narrow trench trenches, establishing positive gravity fall lines toward safe outfalls.

Subbase Aggregate & Forming

Trench bases are compacted with crushed stone. We form dish-shaped concave swales or place trench drain channels.

Rebar Reinforcement & Interlocking

Trench drains and swales are reinforced with rebar cages to handle vehicle crossing traffic without cracking.

Concrete Placement & Grate Fitting

4,000 PSI ready-mix is poured, hand-troweled smooth to encourage high water velocities, and heavy-duty grates are bolted in.

Water Flow Testing & Outfall Armoring

We flood the system with water to verify zero ponding, armoring the final discharge area with heavy rip-rap stone.

Engineering Execution in the Field

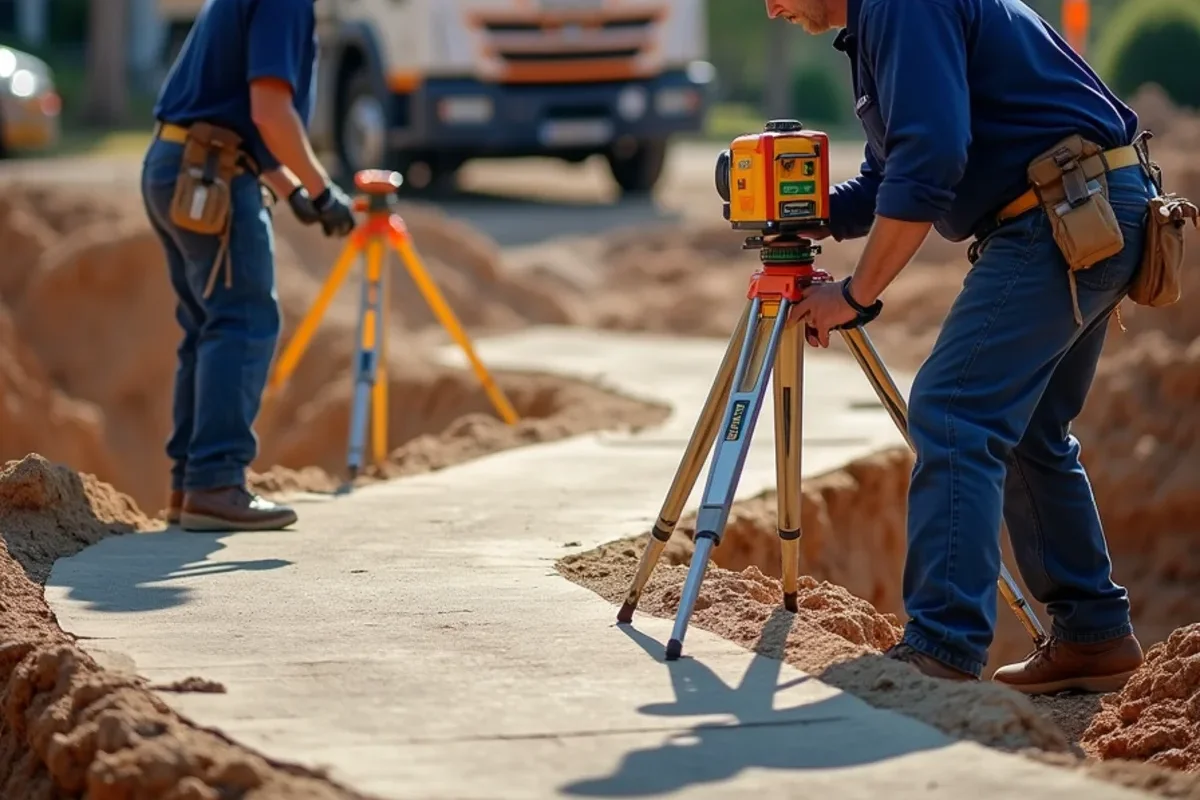

Project manager establishing 1/4-inch per foot drainage pitch across concrete flatwork with rotary laser — Laser transit slope calibration ensuring positive water velocity toward drainage points.

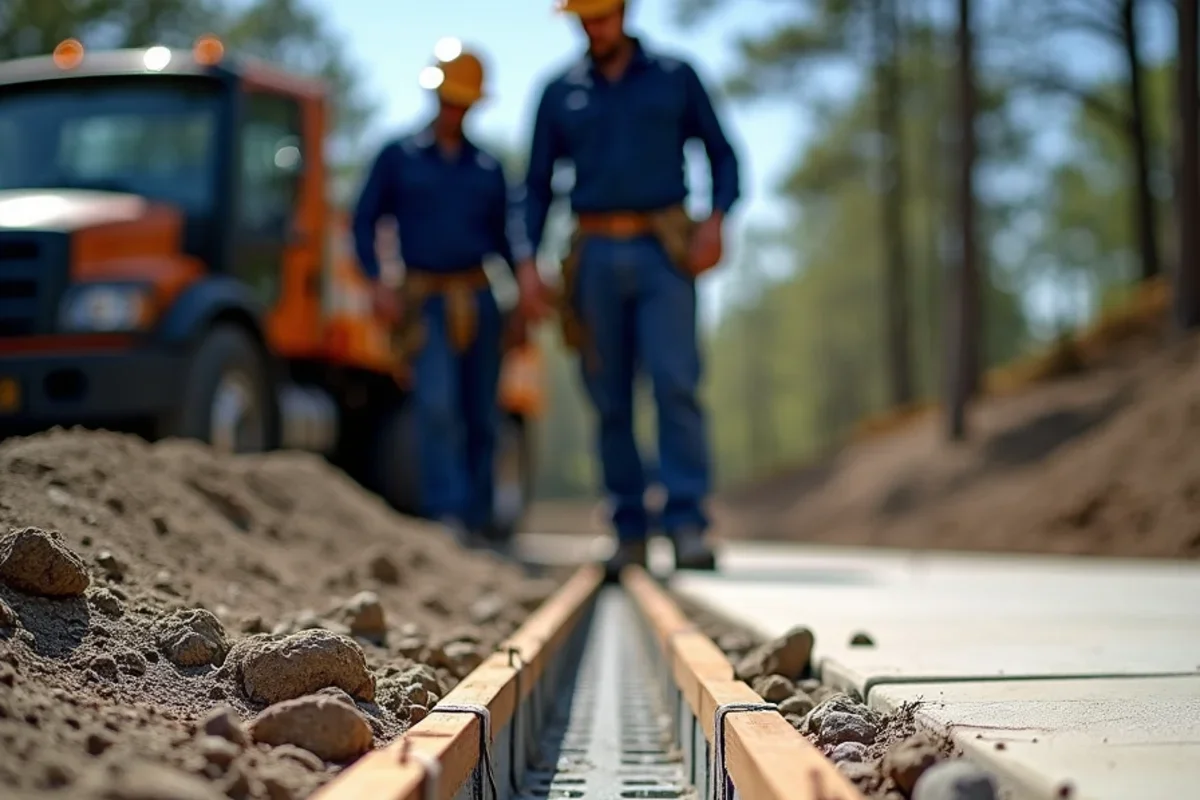

Setting modular polymer concrete trench drain channel suspended in concrete formwork — Heavy-duty linear trench drains capturing sheet runoff before it reaches garage thresholds.

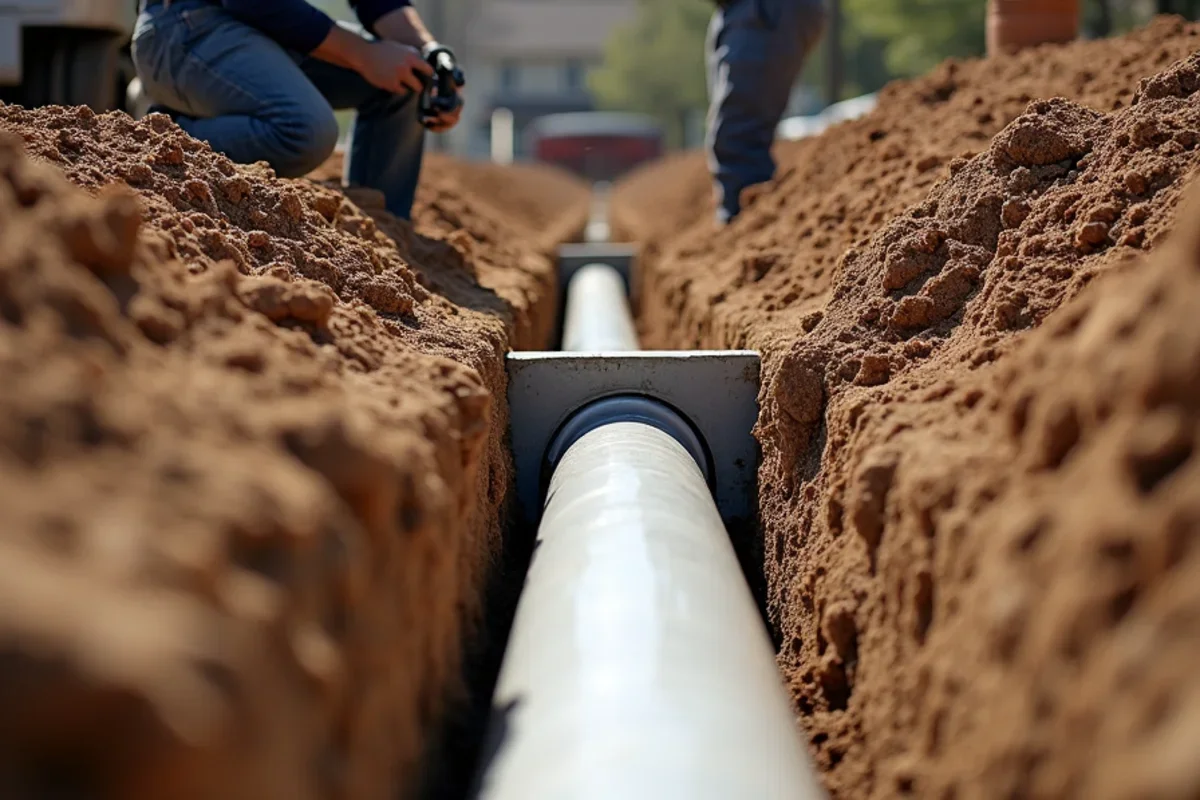

Commercial NDS catch basin with cast iron grate tied to buried solid PVC discharge piping — Deep catch basins capturing concentrated runoff and directing it to safe discharge areas.

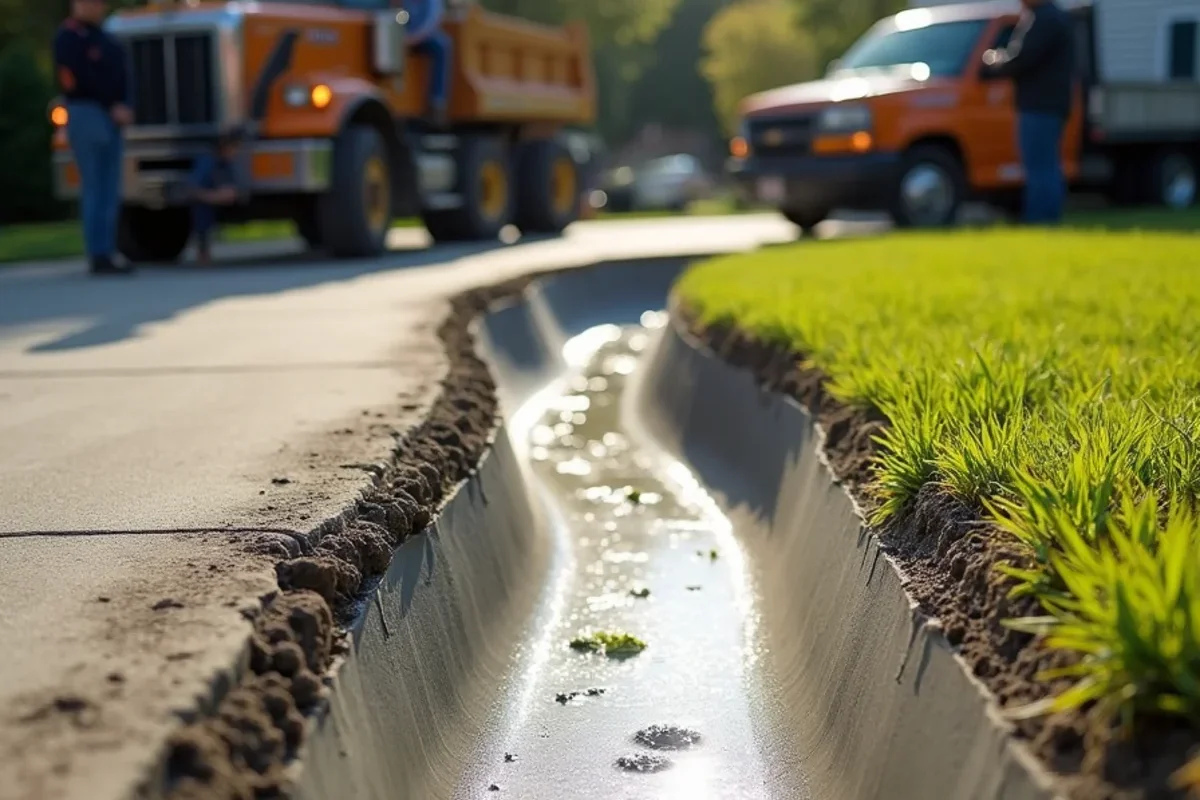

Shallow curved concrete valley swale poured to channel lawn stormwater safely across driveway edge — Monolithic concrete valley swales conveying high-velocity surface water without erosion.

Transparent Estimating

Key Pricing Factors for Concrete Drainage Solutions

Every property has distinct access constraints, elevation grades, and subsoil compositions. Our quotes are 100% itemized so you know exactly what is included:

✓Drainage system type (linear concrete swales vs polymer-concrete channel drains with cast iron grates)
✓Length and depth of drainage run needed to reach a safe, designated discharge outfall
✓Underground PVC piping connections and catch basin integrations
✓Demolition of existing asphalt or concrete required to install recessed trench drains
✓Excavation and subbase rock armoring to prevent erosion at the discharge outfall

Expert Guidance

Frequently Asked Questions: Concrete Drainage Solutions

Common questions regarding concrete drainage solutions across South Carolina and Aiken County.

A concrete swale is a shallow, dish-shaped paved channel formed into your landscape or along a driveway edge. Unlike grass ditches that erode, silt up, and get choked with weeds, a smooth concrete swale moves high volumes of storm runoff rapidly away from structures without eroding surrounding soil.
